OBD Port Jumper Reset for New Transponder on 2007 Hilux

The OBD port jumper reset is a method some owners try when installing a new transponder key on a 2007 Hilux. This guide explains whether the reset works, how the transponder system functions, and what you need to know before attempting the process. Understanding the immobilizer system and key programming steps can save you time, money, and frustration.

If you own a 2007 Toyota Hilux and just got a new transponder key, you might be wondering whether the OBD port jumper reset can help. This is a common question among Hilux owners who want to save money on key programming. The idea of using a simple jumper wire at the OBD-II port to reset the immobilizer sounds easy. But does it really work? Let us walk through everything you need to know.

The 2007 Hilux comes with a factory immobilizer system that recognizes a specific transponder chip inside the key. When you add a new key, the system needs to learn that new chip. Some people try the OBD port jumper reset as a quick fix. Others prefer a proper diagnostic tool. This article covers both approaches so you can decide what works best for your situation.

Key Takeaways

• The OBD port jumper reset may work for relearning a new transponder on the 2007 Hilux, but results vary based on the method used.
• The 2007 Hilux uses a Toyota immobilizer system that requires proper key enrollment for the engine to start.
• Using an OBD-II diagnostic tool is often more reliable than a simple jumper wire reset.
• Common mistakes include incorrect jumper pin connections and skipping the enrollment procedure.
• A professional locksmith or dealer can program a new transponder key if the DIY reset fails.
• Always verify your key type and immobilizer version before attempting any reset procedure.
• Keeping your original key safe makes relearning a new transponder much easier.

What Is an OBD Port Jumper Reset?

A jumper reset involves connecting two pins inside the OBD-II port with a wire or paperclip. The goal is to trick the car’s computer into entering a relearning mode. On some older vehicles, this simple trick can clear error codes or reset certain systems. But when it comes to transponder key programming, the process is not always that straightforward.

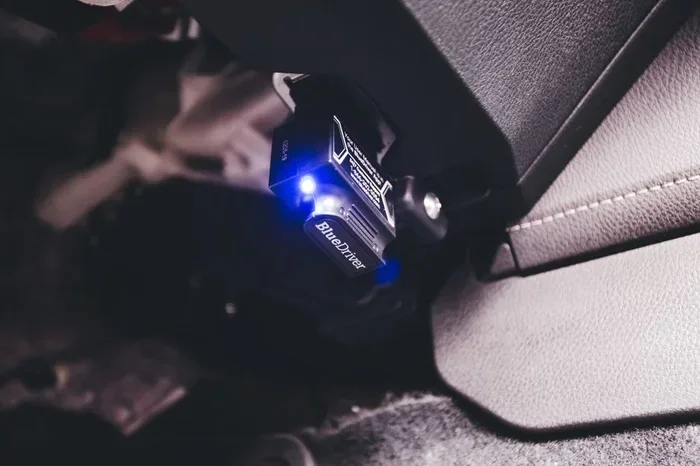

The OBD-II port on the 2007 Hilux is located under the dashboard on the driver side. You plug in a connector and access the diagnostic port. From there, some people attempt to bridge specific pins to initiate a reset. However, the effectiveness of this method depends heavily on the vehicle model and the immobilizer system installed.

Why People Try the Jumper Reset Method

Many Hilux owners choose the jumper reset because it costs nothing. You do not need expensive tools. All you need is a basic wire or paperclip. This appeals to people who want to avoid dealer fees or locksmith charges. The DIY nature of the method is very attractive. But simplicity does not always mean success.

The truth is that the 2007 Hilux uses a Toyota immobilizer system that requires proper key enrollment. A simple jumper reset may not be enough to fully program a new transponder. Let us look at how the system actually works.

How the Transponder System Works on the 2007 Hilux

Every modern Toyota Hilux has an engine immobilizer. This is a security feature that prevents theft. When you turn the key in the ignition, the immobilizer reads the transponder chip inside the key. If the chip matches a code stored in the ECU, the engine starts. If it does not match, the engine will not start at all.

The 2007 Hilux uses a specific type of transponder key. These keys contain a small chip embedded in the plastic head. The chip sends a unique identification signal to the car’s computer. Without the correct signal, the fuel injection system stays disabled. This makes the vehicle very secure but also means key replacement requires proper programming.

Types of Transponder Keys Used

The 2007 Hilux may use one of several transponder types depending on the market and trim level. Common types include:

• Toyota smart key system – used on higher trim models with push-button start
• Fixed transponder keys – standard keys with a non-rewritable chip
• Rolling code transponders – keys that change codes for added security

Knowing which type your Hilux uses matters a lot. The OBD port jumper reset method works differently depending on the transponder type. A fixed transponder is easier to relearn than a rolling code system. Before you attempt any reset, check your key type carefully.

Does the OBD Port Jumper Reset Actually Work?

This is the big question. The short answer is: it depends. In some cases, a jumper reset at the OBD port can help the car recognize a new transponder key. But in many cases, it does not fully work on its own. The reason is that the Toyota immobilizer system on the 2007 Hilux requires a proper enrollment sequence.

A jumper reset might put the ECU into a learning mode. But it does not automatically write the new key code into the system. You still need to follow the correct key learning procedure. This usually involves turning the ignition on and off a specific number of times while the new key is present.

When the Jumper Reset Works

The OBD port jumper reset has a better chance of working when:

• You still have the original working key – the system can be easier to relearn with a known good key present
• You use the correct pin combination – bridging the wrong pins will not trigger the relearning mode
• The immobilizer is not in a locked state – a fully locked ECU may reject any reset attempt
• You follow up with the proper enrollment steps – the jumper is only the first step

When the Jumper Reset Does Not Work

There are situations where the jumper reset simply will not solve the problem. If your original key is lost and you only have the new transponder, the process becomes much harder. The ECU may not accept a new key without the original being recognized first. In these cases, you need a more advanced approach.

Also, if the ECU has been locked due to too many failed key enrollment attempts, the jumper reset will not help. You would need a professional diagnostic tool to unlock the ECU before any new key can be added. This is an important limitation to understand before you start.

Step-by-Step Guide to Using the OBD Port Jumper Reset

If you want to try the OBD port jumper reset on your 2007 Hilux, here is a step-by-step guide. Please note that this method works best when you still have a working original key. Always proceed with caution.

Step 1: Locate the OBD-II Port

Open the driver side door. Look under the dashboard on the left side. The OBD-II port is a trapezoidal connector with 16 pins. It is usually located near the steering column. Plug in your OBD-II connector or prepare your jumper wire.

Step 2: Identify the Correct Pins

You need to bridge the correct pins to initiate the reset. For the 2007 Hilux, the most commonly referenced pins are Pin 4 and Pin 5 on the OBD-II connector. Use a small piece of wire or a paperclip to connect these two pins together.

Step 3: Turn the Ignition On

With the jumper wire in place, turn the ignition to the ON position. Do not start the engine. Wait for about 30 seconds. You may see the security light on the dashboard flash or stay solid. This indicates the system is in a learning or reset state.

Step 4: Remove the Jumper and Insert the New Key

After 30 seconds, remove the jumper wire. Now insert your new transponder key into the ignition. Turn the key to the ON position and wait. The security light should turn off after a few seconds. This means the system has recognized the new key.

Step 5: Complete the Enrollment

Turn the key back to the OFF position. Wait 5 seconds. Turn it back to ON again. Repeat this cycle three to four times. On the final cycle, the security light should stay off. This confirms the new transponder has been enrolled successfully.

Step 6: Test the Engine

Try starting the engine with the new key. If the engine starts and runs normally, the OBD port jumper reset worked. If the engine still does not start, the transponder was not recognized. You may need to try again or use a different method.

Quick Tip: Always keep the original key nearby during this process. If something goes wrong, you can fall back to the original key to keep the vehicle running.

Common Mistakes to Avoid

Many people run into problems when attempting the OBD port jumper reset. Here are the most common mistakes and how to avoid them.

• Using the wrong pins – Not all OBD-II ports use the same pin configuration for resets. Double-check your pin layout before bridging any connection.
• Skipping the enrollment sequence – The jumper reset alone does not program the key. You must follow the full enrollment steps that come after.
• Rushing the process – Timing matters. Wait the full 30 seconds at each step. Rushing can cause the system to time out and reject the new key.
• Not having the original key – Without the original key, the ECU may refuse to enroll a new transponder. Always try with the original first.
• Ignoring error codes – If the dashboard flashes the security light continuously, stop and reassess. Continuing may lock the system further.

When to Seek Professional Help

Sometimes the OBD port jumper reset simply is not enough. If you have tried the steps above and the new transponder still does not work, it is time to get professional help. A Toyota dealer or a qualified automotive locksmith has the tools needed to properly program a new transponder key.

Professionals use advanced diagnostic scanners that can communicate directly with the ECU. These tools can read the immobilizer status, clear lockouts, and enroll new keys properly. For the 2007 Hilux, a Toyota Techstream scanner or equivalent professional tool is the most reliable option.

How Much Does Professional Key Programming Cost?

The cost varies depending on your location and the service provider. A Toyota dealer may charge between 100 and 300 dollars for key programming. An independent locksmith might charge less, often between 50 and 150 dollars. Compare prices before you commit. But remember, getting it right the first time saves you from repeat trips and frustration.

Expert Insight: Always ask the locksmith or dealer if they can perform a full immobilizer relearn, not just a basic key cut. A properly programmed transponder key ensures your 2007 Hilux starts reliably every time.

Alternative Methods to Program a New Transponder Key

If the OBD port jumper reset does not work for you, do not worry. There are other methods available. Here are the most common alternatives for the 2007 Hilux.

1. Using an OBD-II Diagnostic Scanner

A quality OBD-II scanner with transponder programming capability can do what a simple jumper wire cannot. Tools like the Autel MaxiIM or Launch X431 can communicate with the Toyota ECU and enroll new keys properly. These devices cost more than a jumper wire but offer a much higher success rate.

2. Visiting a Toyota Dealer

The dealer has access to factory tools and software. They can read the immobilizer ID and program a new key with precision. This is the most reliable method, though it is usually the most expensive. For peace of mind, the dealer route is hard to beat.

3. Hiring a Mobile Automotive Locksmith

A mobile locksmith comes to your location and programs the key on the spot. Many locksmiths carry Toyota-specific key programming equipment. This is a good middle ground between DIY and the dealer. You save on towing costs and get professional results.

Each alternative method has its pros and cons. The OBD scanner offers a balance of cost and reliability. The dealer offers the highest reliability. The locksmith offers convenience. Choose the option that fits your budget and situation best.

Key Takeaways to Remember

The OBD port jumper reset can work for some 2007 Hilux owners trying to enroll a new transponder key. However, it is not a guaranteed fix for every situation. The method works best when you have the original key and follow all enrollment steps carefully. If the jumper reset fails, do not force the process. Instead, try an OBD scanner, visit a dealer, or call a professional locksmith. Your 2007 Hilux deserves a properly programmed key for reliable starting and full security.

Take your time with the process. Read each step carefully. And if something feels wrong, stop and reassess. A little patience goes a long way when working with the immobilizer system on your Hilux.

Frequently Asked Questions

Can I use a paperclip to perform the OBD port jumper reset on my 2007 Hilux?

Yes, a paperclip can work as a jumper wire to bridge the correct pins on the OBD-II port. However, you must make sure you are connecting the right pins. Bridging the wrong pins could cause issues. Always double-check the pin layout for the 2007 Hilux before attempting any connection.

Will the OBD port jumper reset erase any existing settings on my 2007 Hilux?

In most cases, a simple jumper reset will not erase your existing settings. However, it may reset certain learned key codes in the ECU. This means previously programmed keys might need to be re-enrolled. Always keep your original key safe during the process to avoid being locked out.

How long does the OBD port jumper reset take to complete?

The entire process typically takes about 10 to 15 minutes. This includes the jumper connection, the waiting period, and the key enrollment sequence. If you need to repeat the process, it may take longer. Patience is key when working with the immobilizer system.

What should I do if the security light stays on after the jumper reset?

If the security light stays on, the new transponder key was not recognized. This could mean the jumper pins were wrong, the enrollment steps were incomplete, or the ECU is locked. Try the process again carefully. If it still fails, seek help from a professional locksmith or Toyota dealer.

Do I need any special tools besides a jumper wire for this reset?

A basic jumper wire or paperclip is all you need for the OBD port jumper reset method. However, having an OBD-II connector makes it easier to access the port. For a more reliable result, consider using a diagnostic scanner that supports Toyota transponder programming.

Can I program a completely new transponder key without the original key on a 2007 Hilux?

Programming a new key without the original is very difficult on the 2007 Hilux. The immobilizer system usually requires at least one recognized key to enroll a new one. In most cases, you will need a professional diagnostic tool or dealer assistance to add a key when the original is lost.

=== CONCLUSION ===

The OBD port jumper reset is a method worth trying when you need to add a new transponder key to your 2007 Hilux. It is simple, free, and can work under the right conditions. However, it is not a magic fix. Success depends on using the correct pins, following the full enrollment procedure, and having the original key available if possible.

If the jumper reset does not work, do not give up. There are reliable alternatives like OBD diagnostic scanners, Toyota dealers, and mobile locksmiths. Each option gives you a solid path to getting your new transponder key programmed correctly. The most important thing is to stay patient and follow each step carefully. Your 2007 Hilux will start up and run strong once the new key is properly recognized.
